TRI-PROOF LIGHTING
TRI-PROOF LIGHTING
Technical specifications
| Reference No | DMJR-TP20W008 |
| Power | 20W, 40W, 60W, 80W |
| IP | 66 |
| CCT | 3000K/4000K/5000K |
| CRI | 83 |
| Beam Angle | 120° |
SHARE
Check Details
Access all technical details of the product in a single PDF file.
Simule o produto no seu espaço

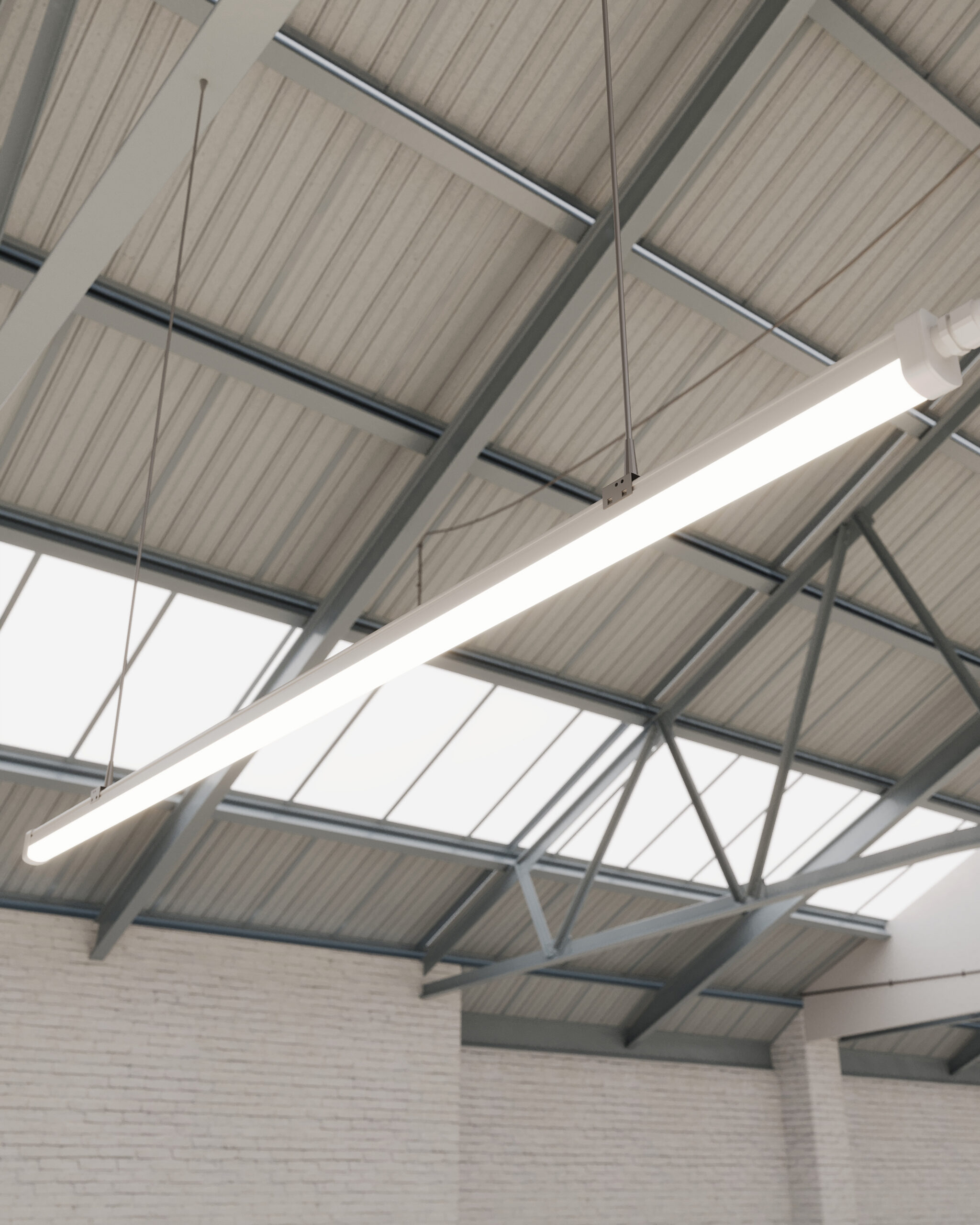

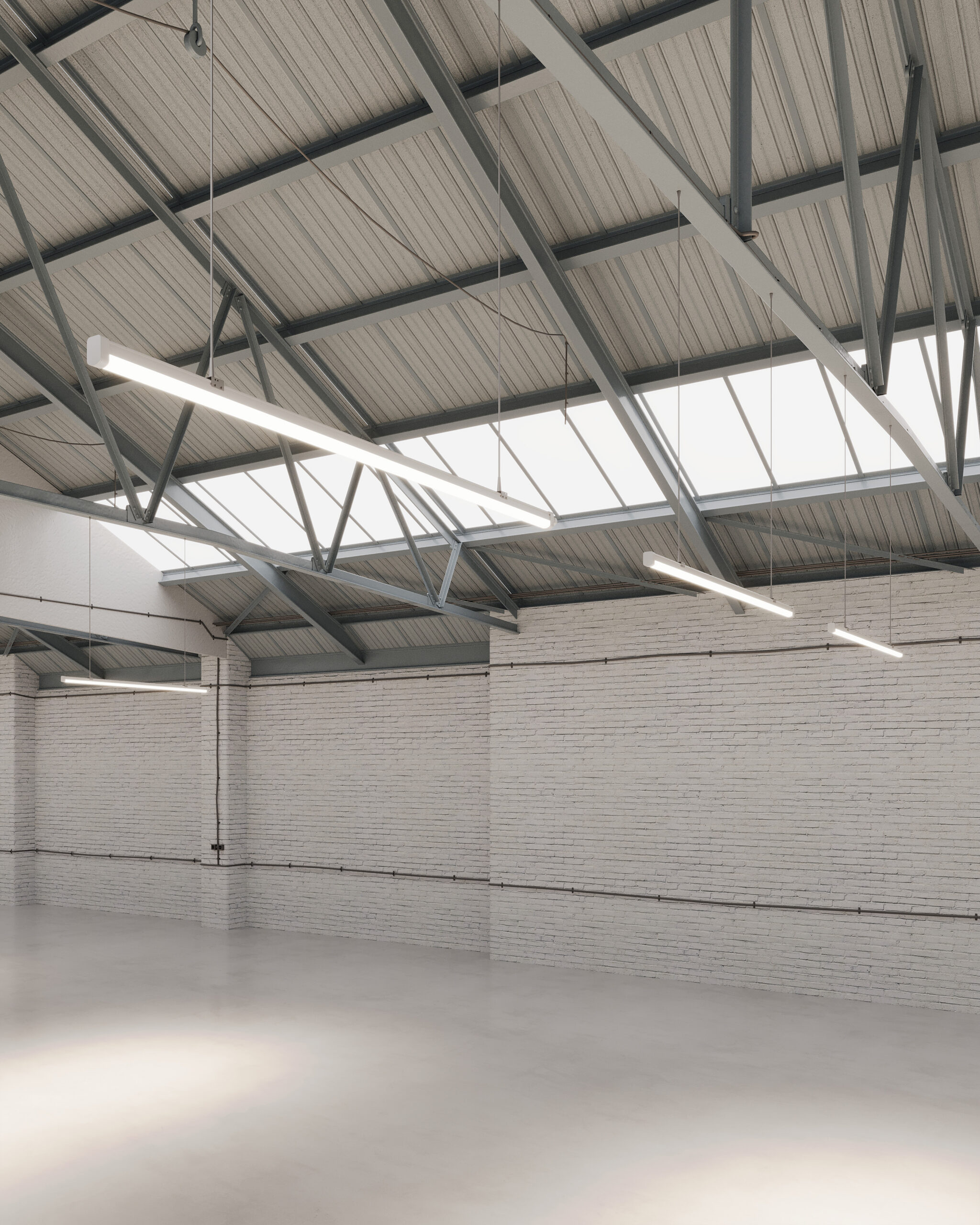

The Linear LED Bar offers a robust, efficient, and resistant lighting solution for demanding environments. With a linear and efficient design, it combines protection against water, dust, and impacts with high energy performance, ideal for industrial, commercial, and protected outdoor applications.
Power: 20W / 40W / 60W / 80W
Nominal Voltage: 220–240V
Color Temperature: 3000K / 4000K / 5000K
Luminous Efficacy: 130–135 lm/W
Beam Angle: 120°
CRI: 83
IP: 66
Color: Upon request
Material: PC + Anti-UV Material
Energy Class: A+
Certifications: CE / RoHS / ETL / FCC
DMJR-TP20W008 – 600 × 75 × 63 mm
DMJR-TP40W009 – 1200 × 75 × 63 mm
DMJR-TP60W010 – 1500 × 75 × 63 mm
DMJR-TP80W011 – 2400 × 75 × 63 mm
